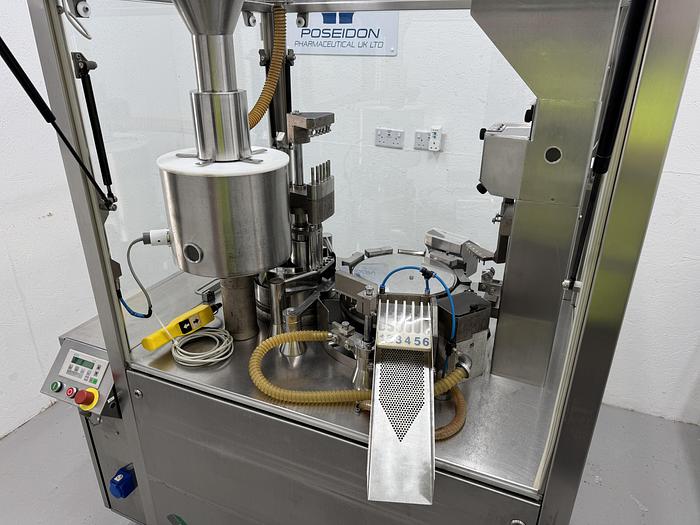

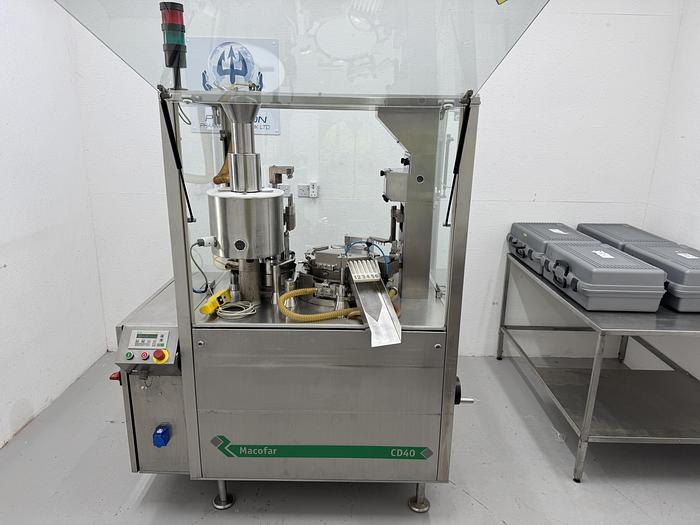

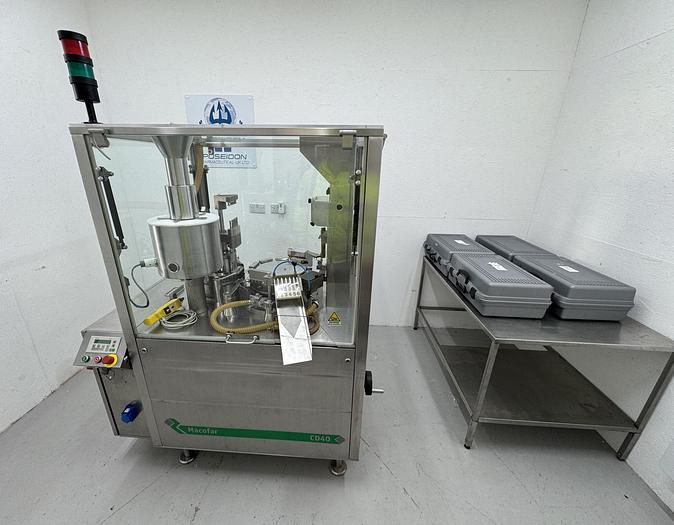

Macofar CD-40 Automatic Capsule Filler

The Macofar CD-40 Capsule Filling Machine -

Automatic, intermittent motion capsule filler in Pharma grade Stainless Steel.

Suitable for small to medium production runs, with mechanical output up to 40,000 capsules per hour: For filling powders, pellets and tablets (incl. various possible combinations between powder, micro tablet and pellets).

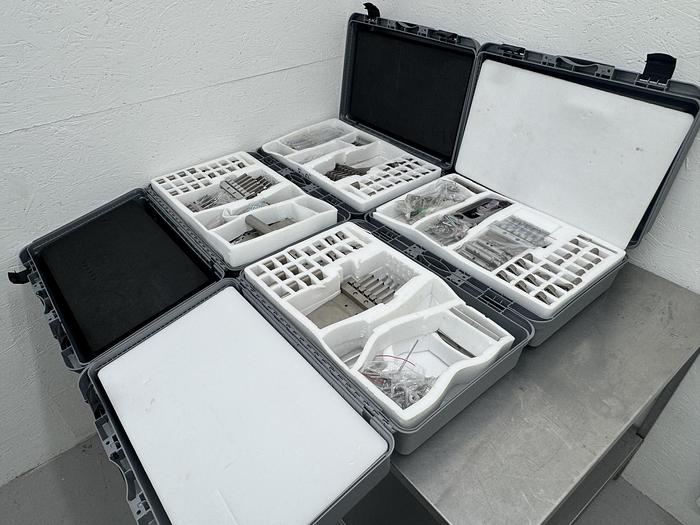

It comes with 3 capsule size format sets

0 / 2 / 4

The machine originates from a prominent Pharmaceutical production site in Europe and it is in excellent overall condition - well looked after and serviced on regular basis.

Machine size: L: 1500mm x W: 1200mm x H: 1800mm

Weight: 1100kg

Technical info:

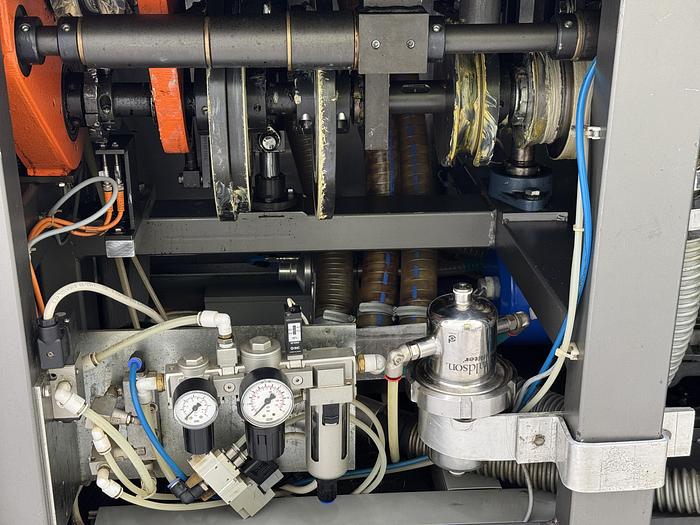

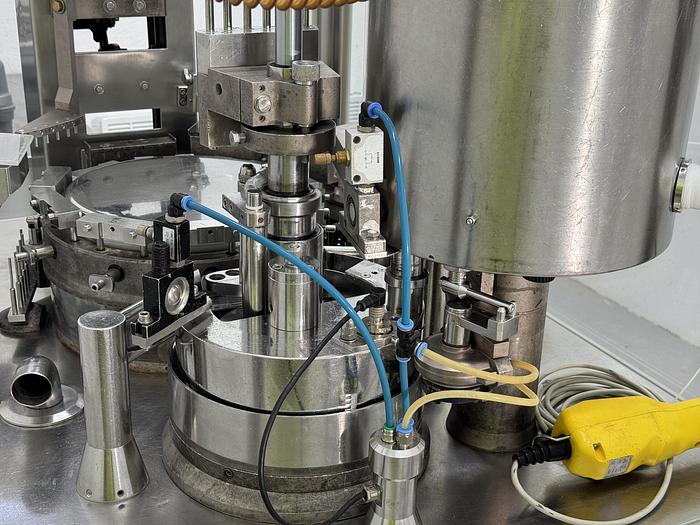

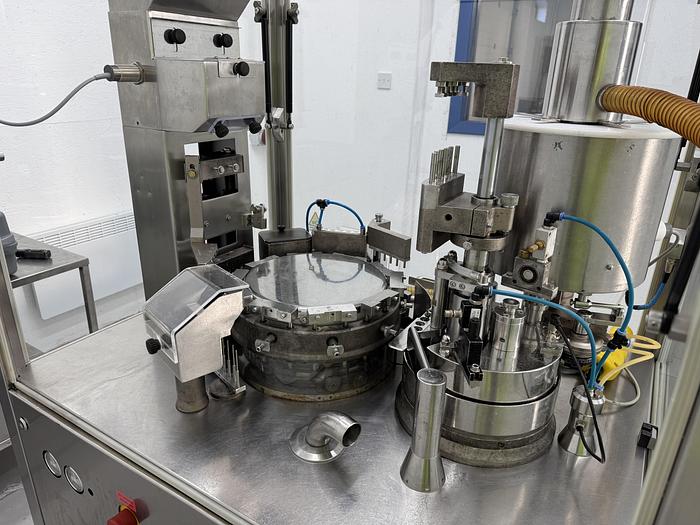

•           The dosing / filling stations (dosators) are vacuum assisted, which increases the filling accuracy, allows for handling powders with difficult flow characteristics and - improves compaction of powder

•           CE marked

•           Capability to fill a wide range of powders

•           Minimum format parts for fast changeover

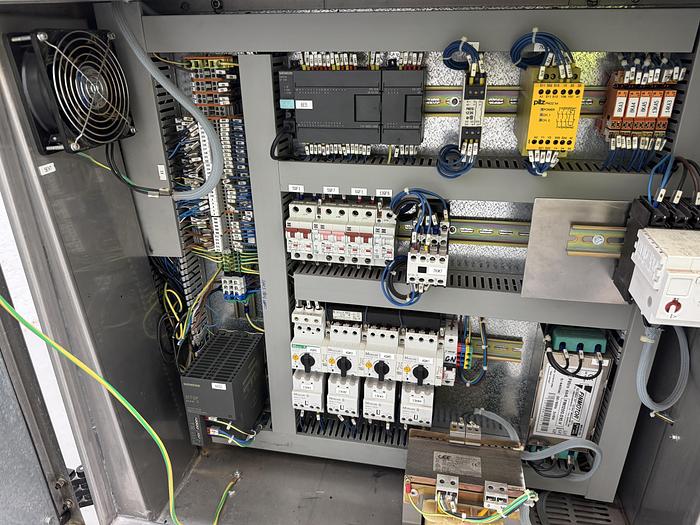

•           Standard voltage 380 V – 3ph 50 Hz

•           Rated powder 3,5 kW

•           Air consumption NI/ min 150
