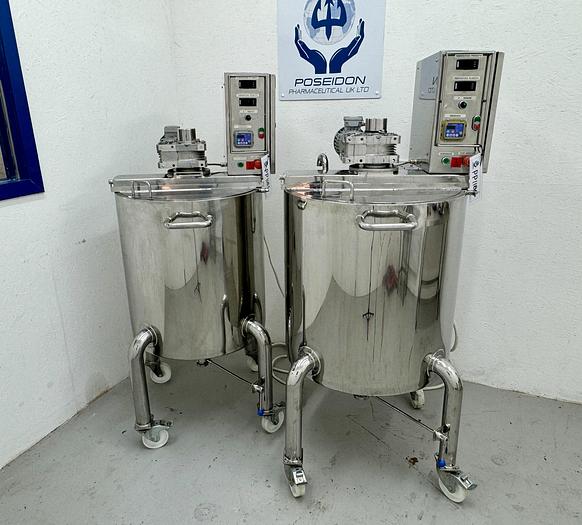

Urlinski MZUTT 120 Litre Jacketed Anchor Gate Mixer

Water jacketed mixer, excellent build quality with entire construction made from mirror polished 304 Stainless Steel.

Commonly used in Cosmetics, Pharmaceutical, Biotech, Contract Manufacturing and Chemical sectors.

Designed for pressure less, oil phase emulsion mixing process of liquid substances in higher viscosity applications (creams, gels etc.) for heat transfer.

Features conical shaped bottom vessel mounted on 4 legs with casters (with 2 x lockable casters to prevent machine from moving).

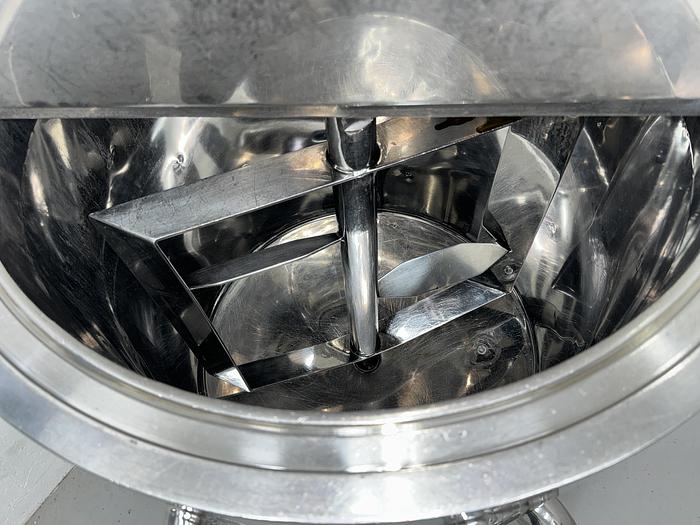

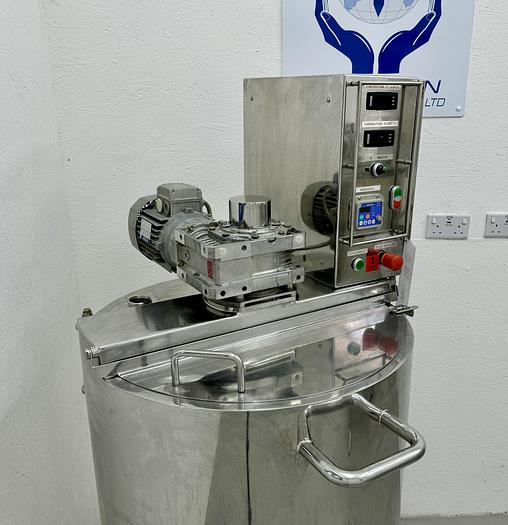

Equipped with top mounted motor and anchor gate agitator with 2 additional blades for even mix and for keeping products homogenous.

A special plug is placed at the bottom of the tank to prevent insoluble substances from settling. Comes with tiltable lid (with auto-stop, when lid is open) and bottom mounted outlet flap valve.

Water jacket is equipped with ball valve connector; comes with 2 temperature sensors – 1. fitted to the bottom of vessel and 2. fitted to the jacket.

Vessel internal DIA Ø – 570mm; working capacity: 120 Litre (with maximum factory capacity of 160 Litre); jacket max temperature: 95 °C; product max temperature: 90 °C; 1.1 kW motor; stepless inverter to control 15 to 40 RPM; heaters: 20 kW (2 x 10kW); electric supply: 400V + PE + N; 50Hz; motor: Bonfiglioli Riduttori, model: PN 80 C4;  with a control panel mounted on the top of the unit.
